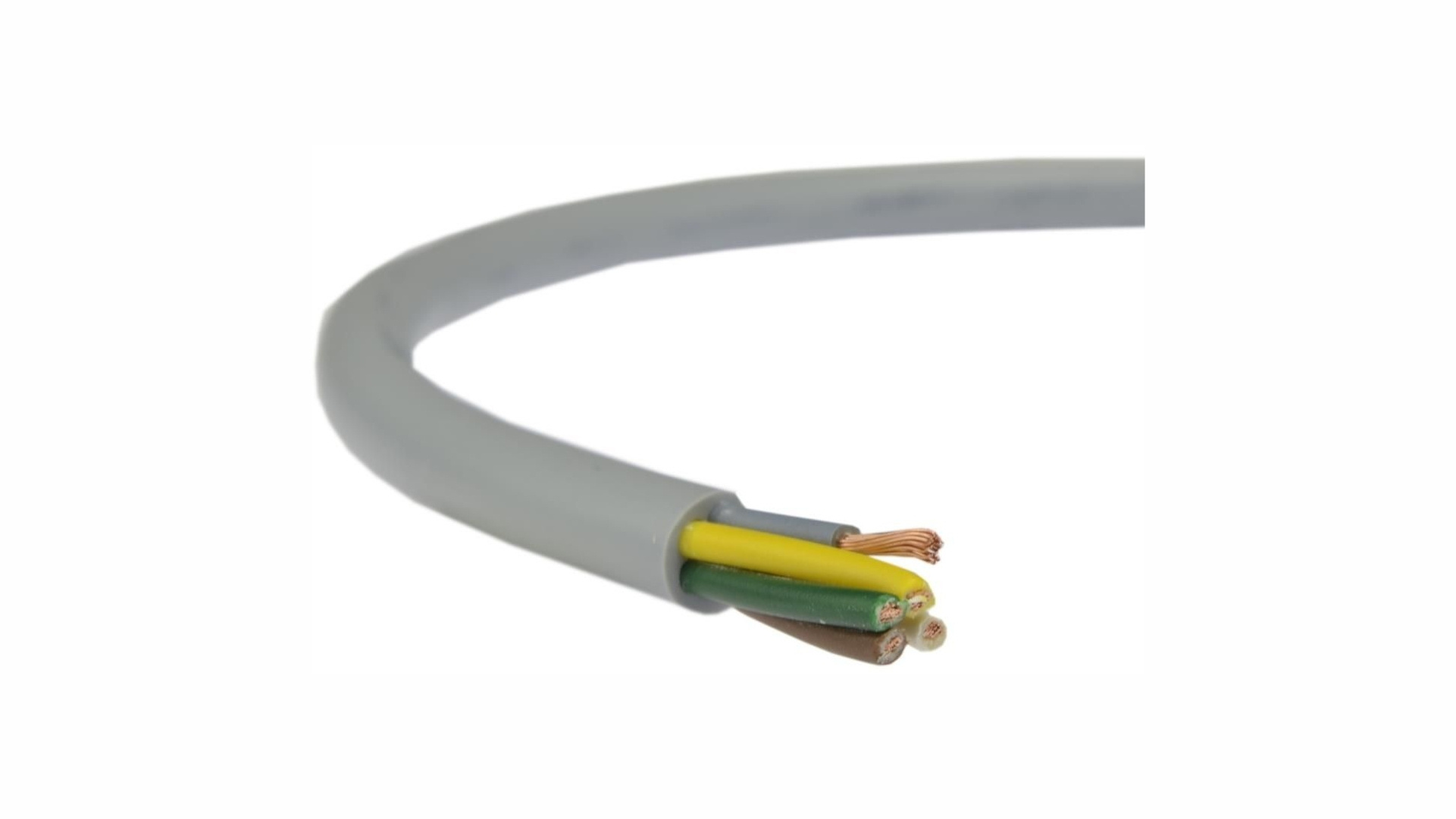

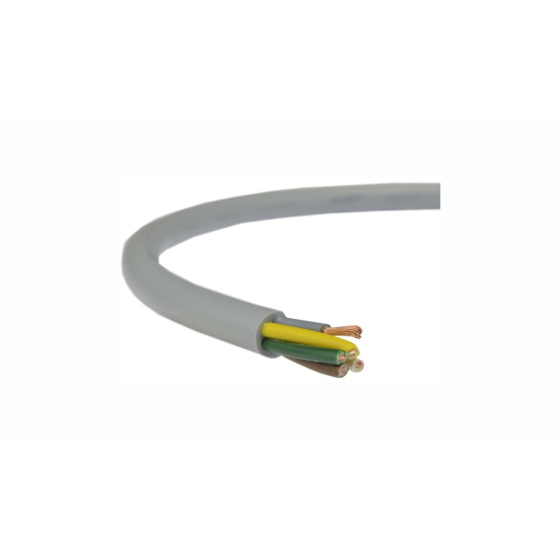

LIYY cable 5x0,75 mm2 gray
Skladem
Termín a způsob doručení
Cable intended for control circuits. The cable is characterized by high flexibility, small dimensionVíce
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Kód u dodavatele:
14-0001-12
EAN:
5902956000958
Stav:
Type:
Cables
Popis LIYY cable 5x0,75 mm2 gray
Cable intended for control circuits. The cable is characterized by high flexibility, small dimensions while maintaining mechanical strength. Cables intended for use inside buildings in dry and humid rooms. The product is sold by the meter. The price applies to the purchase of one meter of cable.
| Shielding | no |
| Number of veins | 5 |
| Operating voltage [V] | 300/300 |
| Cross the veins [mm²] | 0.75 |
| Operating temperature (permanent installation): | -40°C to 80°C |
| Operating temperature (mobile installations): | -5°C to 70°C |
| Voltage test: | ≤ 0.34mm² 1200 V / ≥ 0.5mm² 1500 V |
| Insulation resistance: | 20 MΩ x km |
| Capacity (at 800Hz): | core 0.14mm² 120pF/m |
| Capacity (at 800Hz): | strand ≥0.25 mm² 150pF/m |
| Inductance: | 0.65 mH/km |
| Min. bending radius: movable joints: | 7.5 x Ø / permanent arrangement: 4 x Ø |
Dokumenty
Katalogová karta
