LUMINES COVER BASIC Flex opal 1 m
Skladem
Termín a způsob doručení
ASIX FLEX diffuser is a flexible, flat cover designed for LED profiles bent horizontally, i.e. in a Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Kód u dodavatele:
11-4511-10
EAN:
5904405994153
Stav:
System:
A, B, C, G, H, Y, Q18, W, COSMO, RETO, MONO, TIANO, FLARO, APA12, APA16, IPA12, IPA16, J, Q20, FALCO, GAUDI, V, SLIMO, SONO, BRUNO, CANTO, VIGO, FLEXA, inFLEXA
Cover Length:
1 m
Cover Shapes:
BASIC FLEX
Cover Colors:
Opal
Popis LUMINES COVER BASIC Flex opal 1 m

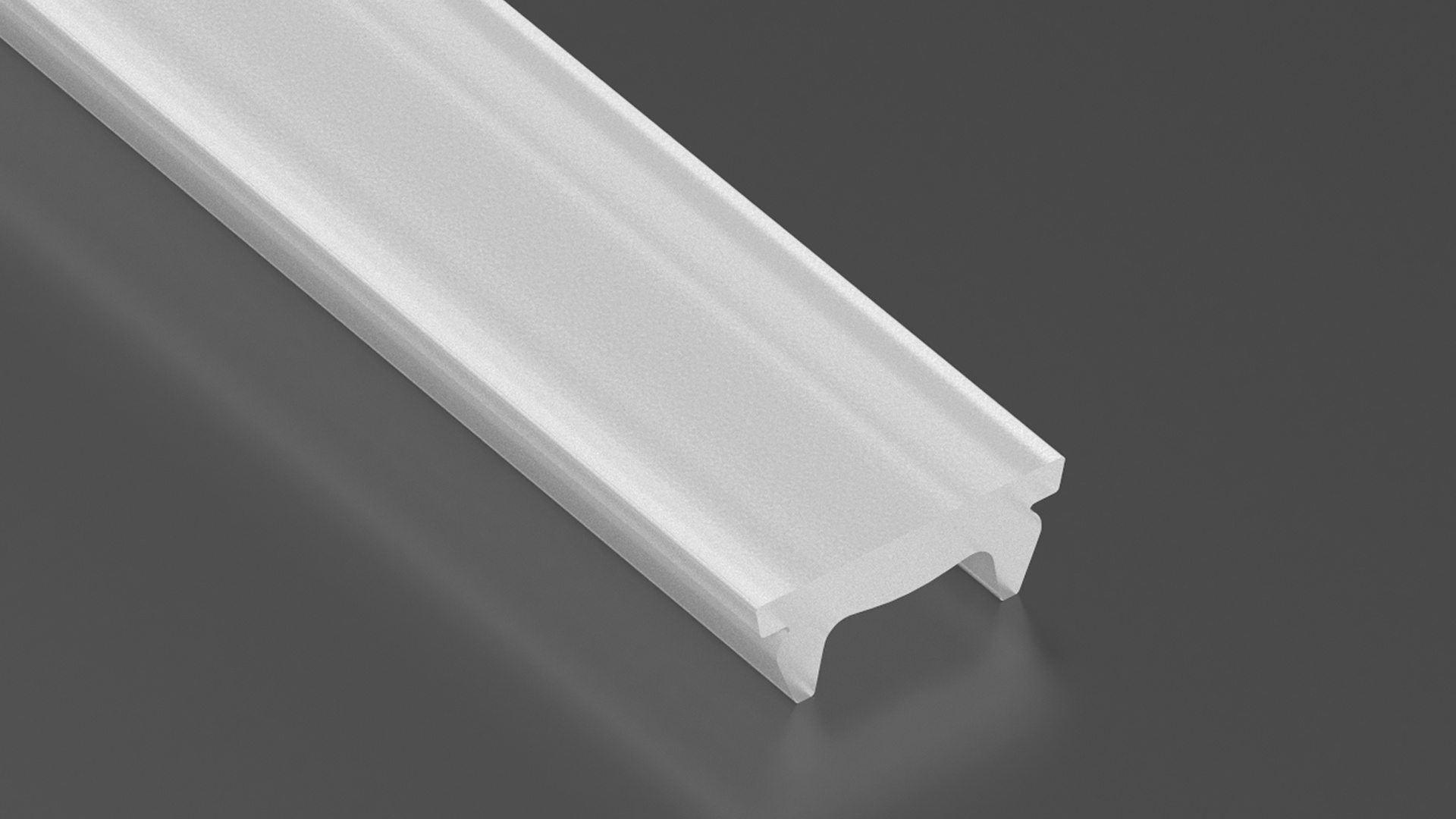

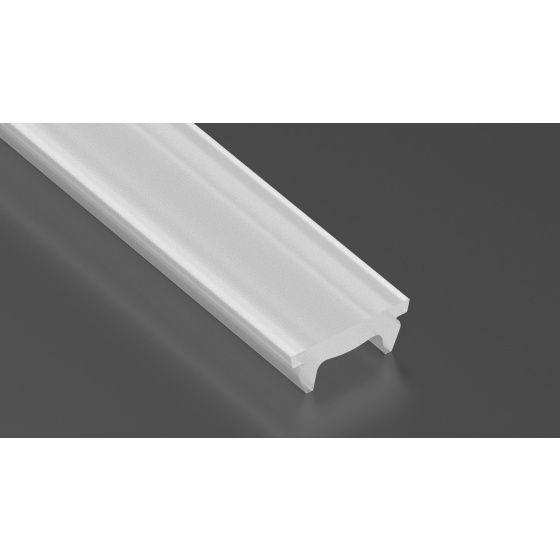

ASIX FLEX diffuser is a flexible, flat cover designed for LED profiles bent horizontally, i.e. in a plane parallel to the position of the diffuser.
The diffuser is made of Dow Corning silicone, which is characterized by high resistance to mechanical deformation and appropriate elasticity, allowing safe and long-term use in bent LED profiles.
The applied material eliminates the risk of deformation, ensuring a continuous line of light even during long-term operation.
The diffuser is mounted in aluminum LED profiles, where it performs key functions:
· Protection – protects the LED strip against dirt, moisture, and mechanical damage, significantly extending its service life.
· Light diffusion – effectively diffuses the light emitted by LED strips, providing a uniform lighting effect.
· Aesthetics – conceals light sources and mounting elements, giving the luminaire a coherent and modern appearance.
Transparency
| Opal | 68,30% |
Table of minimum bending radius for LUMINES profiles
LUMINES A profile
| Type of bending | Lighting direction (position of the cover in the fixture) | FLEX cover | PMMA/PC cover |
| horizontal (transverse) | down | 300 | — |
| vertical | inward | 200 | 200 |
| vertical | outward | 150 | 325 |
LUMINES FLEXA profile
| Type of bending | Lighting direction (position of the cover in the fixture) | FLEX cover | PMMA/PC cover |
| horizontal (transverse) | down | 475 | — |
| vertical | inward | 360 | 360 |
| vertical | outward | 175 | 250 |
LUMINES inFLEXA profile
| Type of bending | Lighting direction (position of the cover in the fixture) | FLEX cover | PMMA/PC cover |
| horizontal (transverse) | down | 475 | — |
| vertical | inward | 350 | 350 |
| vertical | outward | 150 | 150 |
Minimum bending radius (mm) for the given cover. Max. circle diameter: 1850 mm (from a 6 m profile).
Tolerance: +/- 5%. Production end allowances: 250 mm. Bent profiles are available only in a lacquered finish.
Bending service available upon prior contact with customer service.
