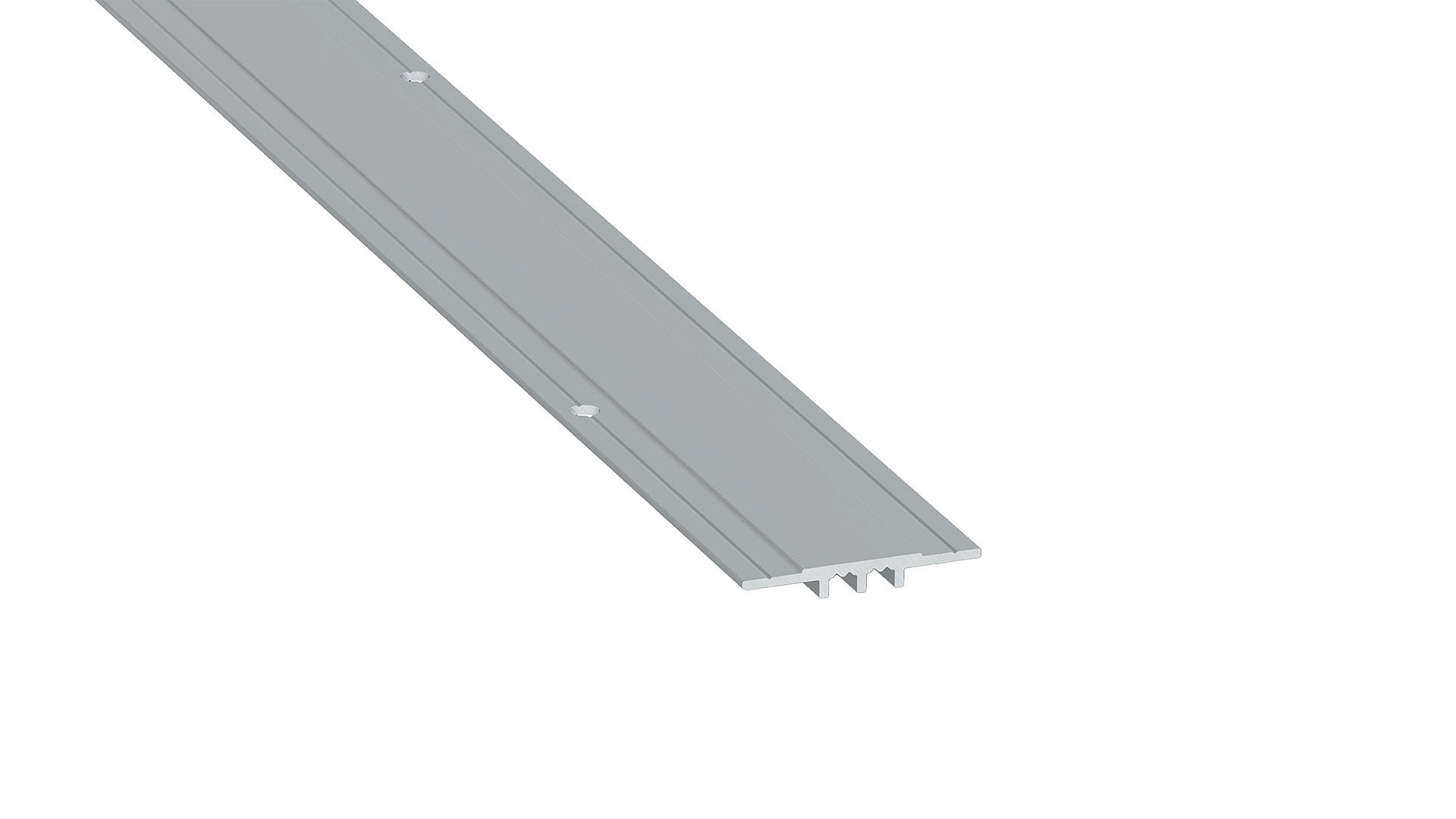

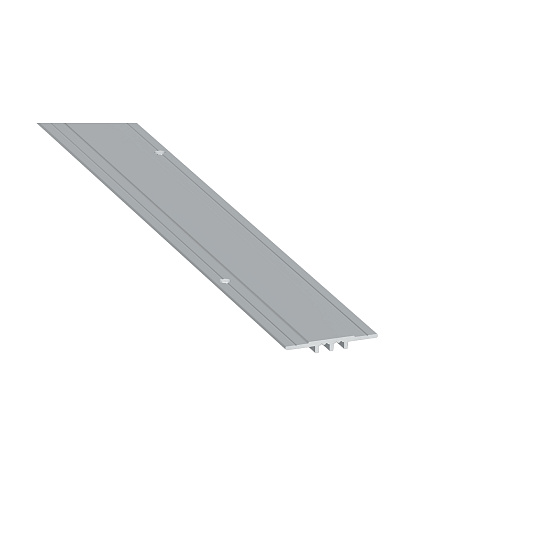

Lumines profile type DURO M1 anodized silver, 1 m

The DURO M1 mounting profile serves as an auxiliary element for installing LED lighting in the DURO profile, designed for installation in concrete using the pouring method. The maximum LED strip width is 12 mm.

Color version:
- anodized silver profile

Installation method:
- using mounting screws

The profile is sold in standard lengths: 1000 mm, 2020 mm, 3000 mm.

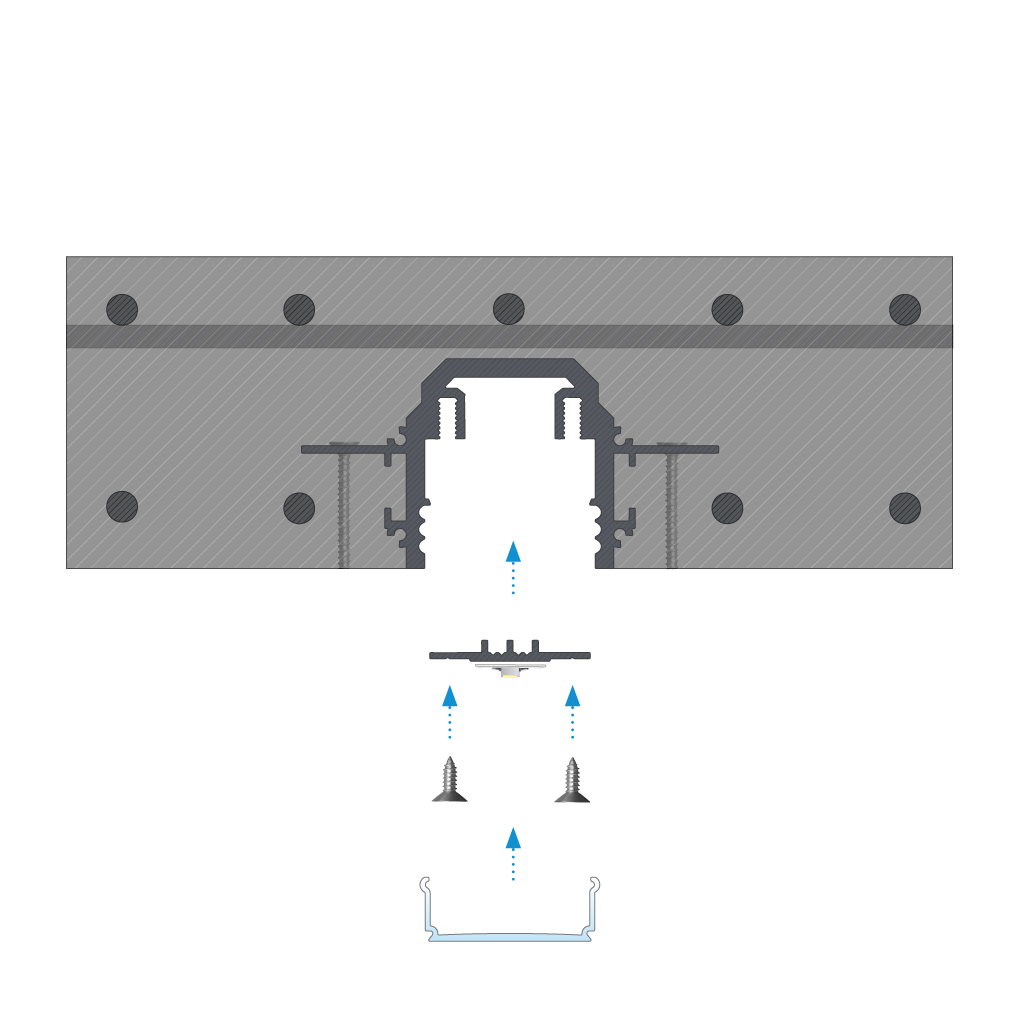

Instructions for installing DURO M1 assembly profile with LIFT ONE cover using screws.

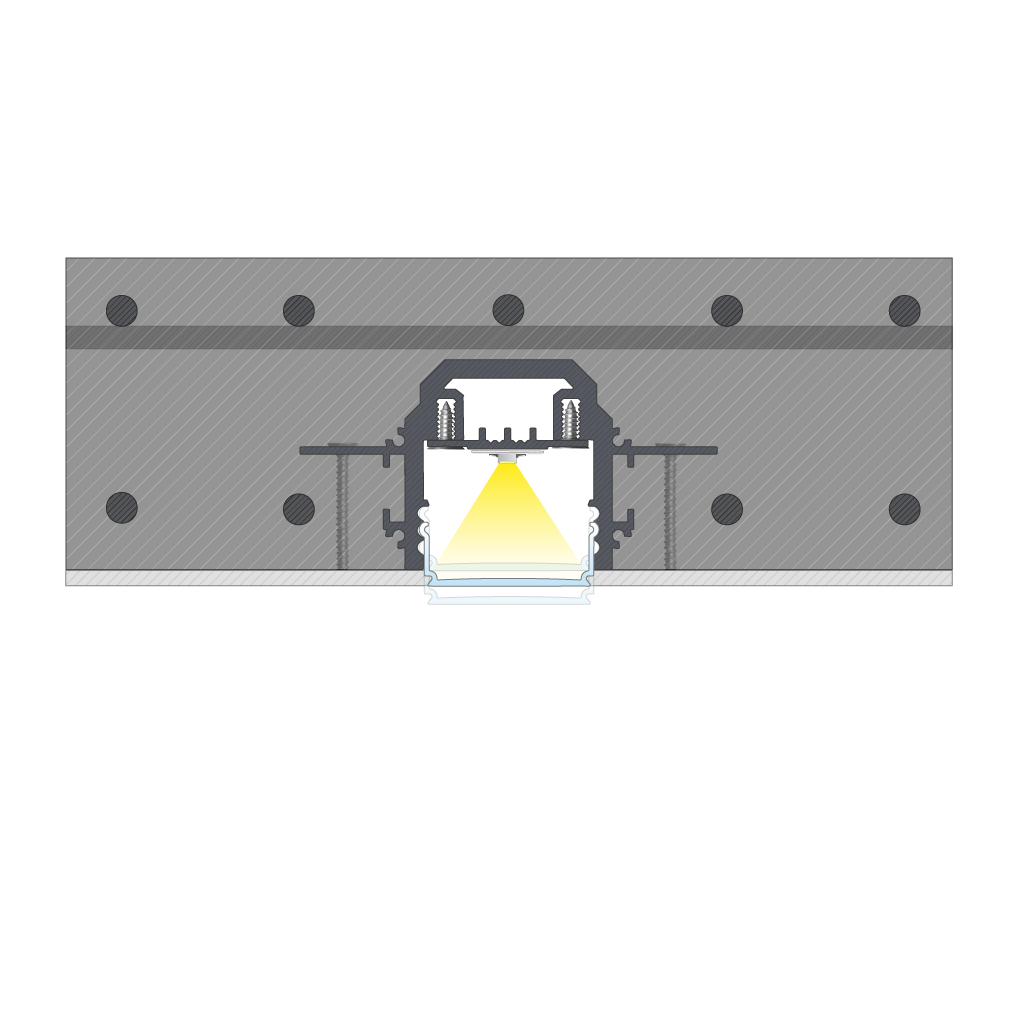

The effect of mounting DURO M1 assembly profile with LIFT ONE cover using screws after plaster finishing.

Assembly scheme for elements of the lighting system using DURO LED profile and (1) LIFT ONE cover, (2) LED strip, (3) DURO M1 assembly profile, (4) DURO end cap without hole, (4a) DURO end cap with hole.
