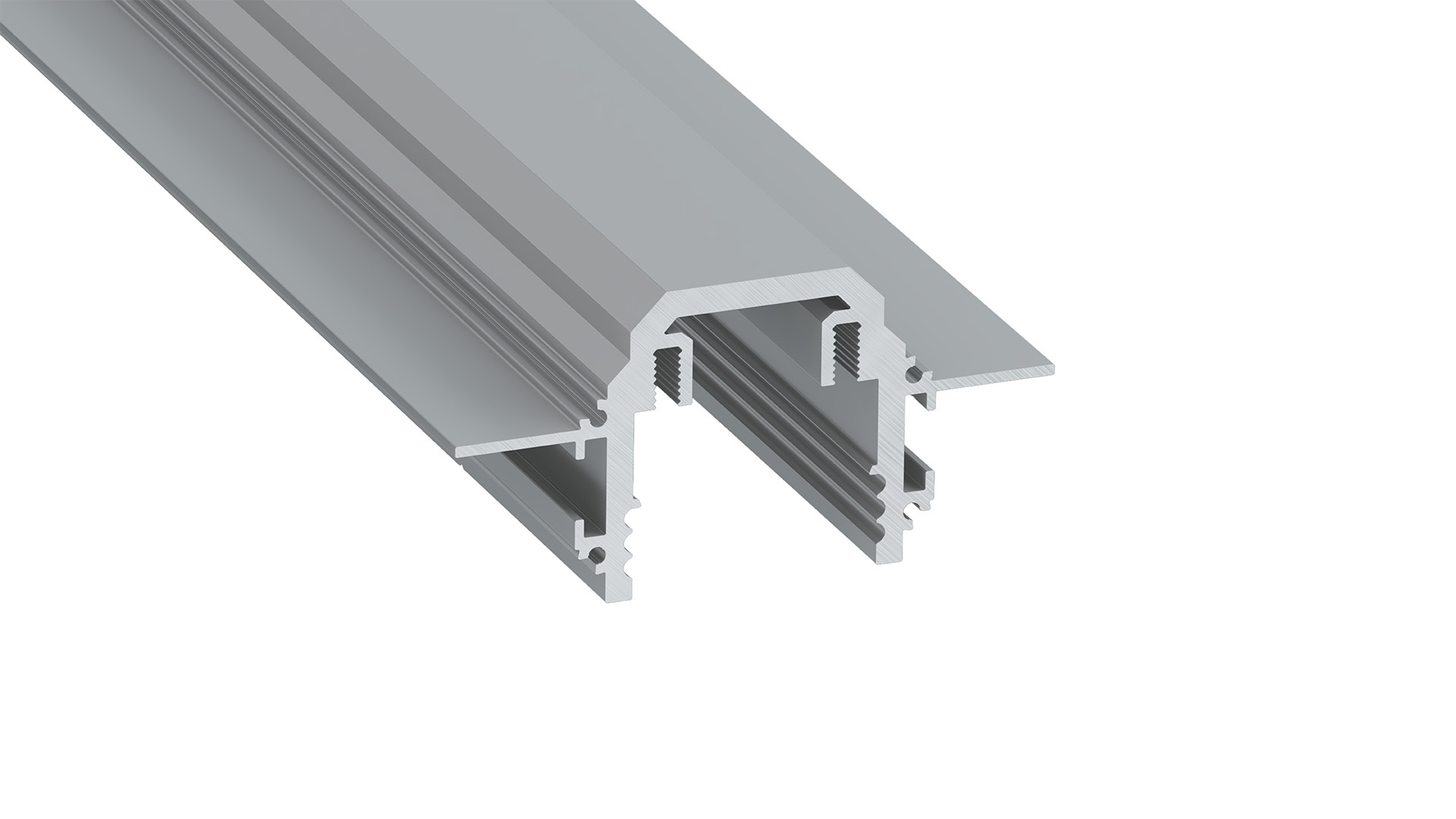

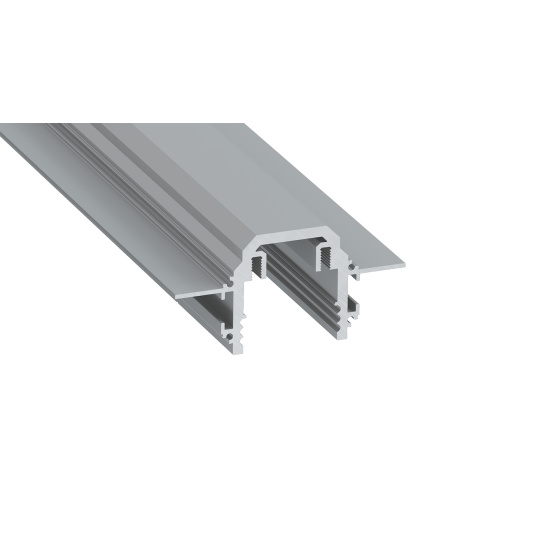

Lumines profile type DURO silver anodes, 1 m

A DURO LED system is designed for installation in concrete using the pouring method and adapted for mechanical anchoring in formwork.

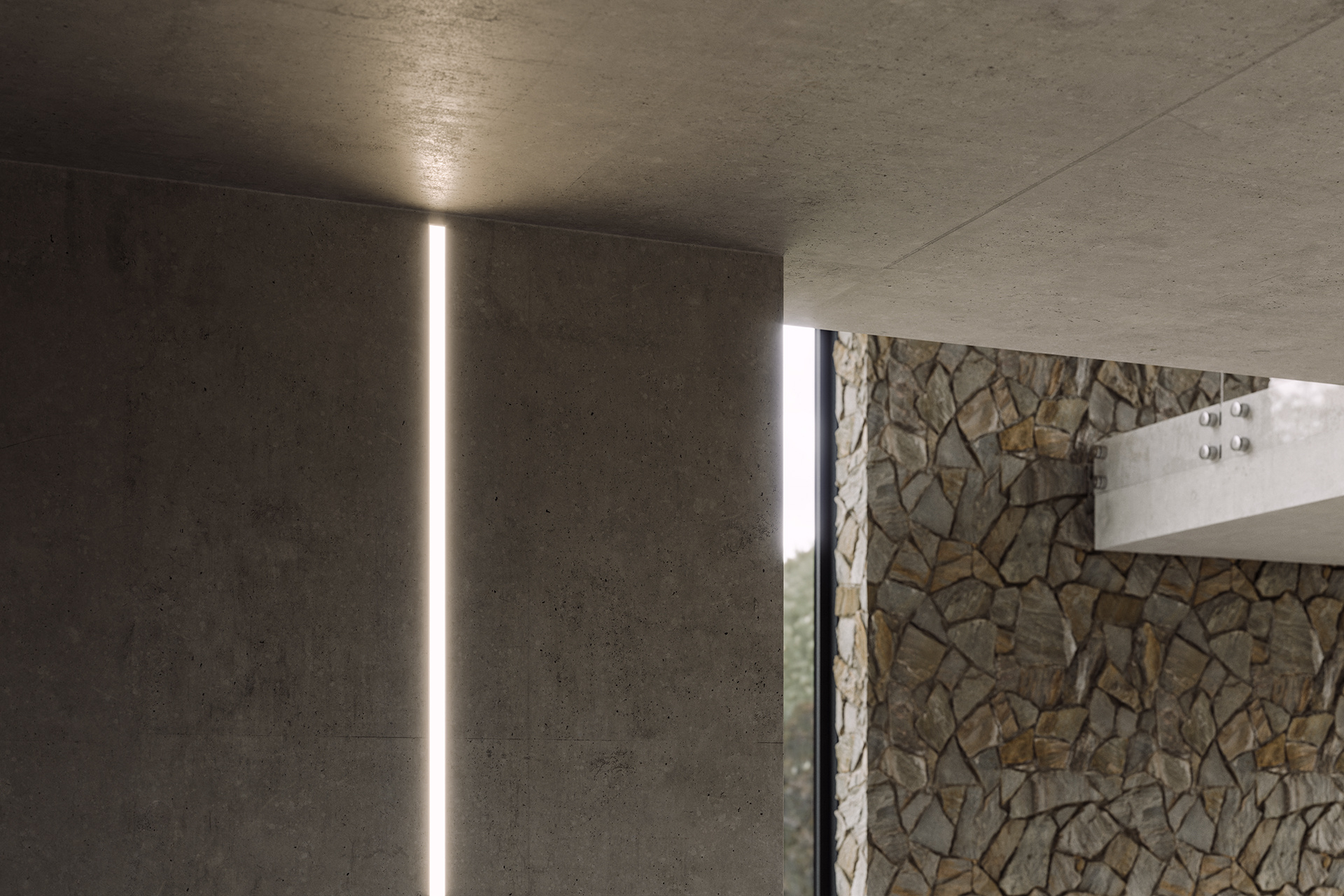

It ensures high stability, load resistance, and a precise light line finish in ceilings, walls, and other concrete surfaces.

The system is designed for a single LED strip. Thanks to a specially developed LIFT ONE cover, the cover surface can be precisely aligned with plaster layers of various thicknesses, while its construction facilitates easy service access to the light source.

Color variants:

• silver anodized

Cover:

• LIFT ONE – opal

End caps:

• aluminum with hole: silver anodized
• aluminum without hole: silver anodized

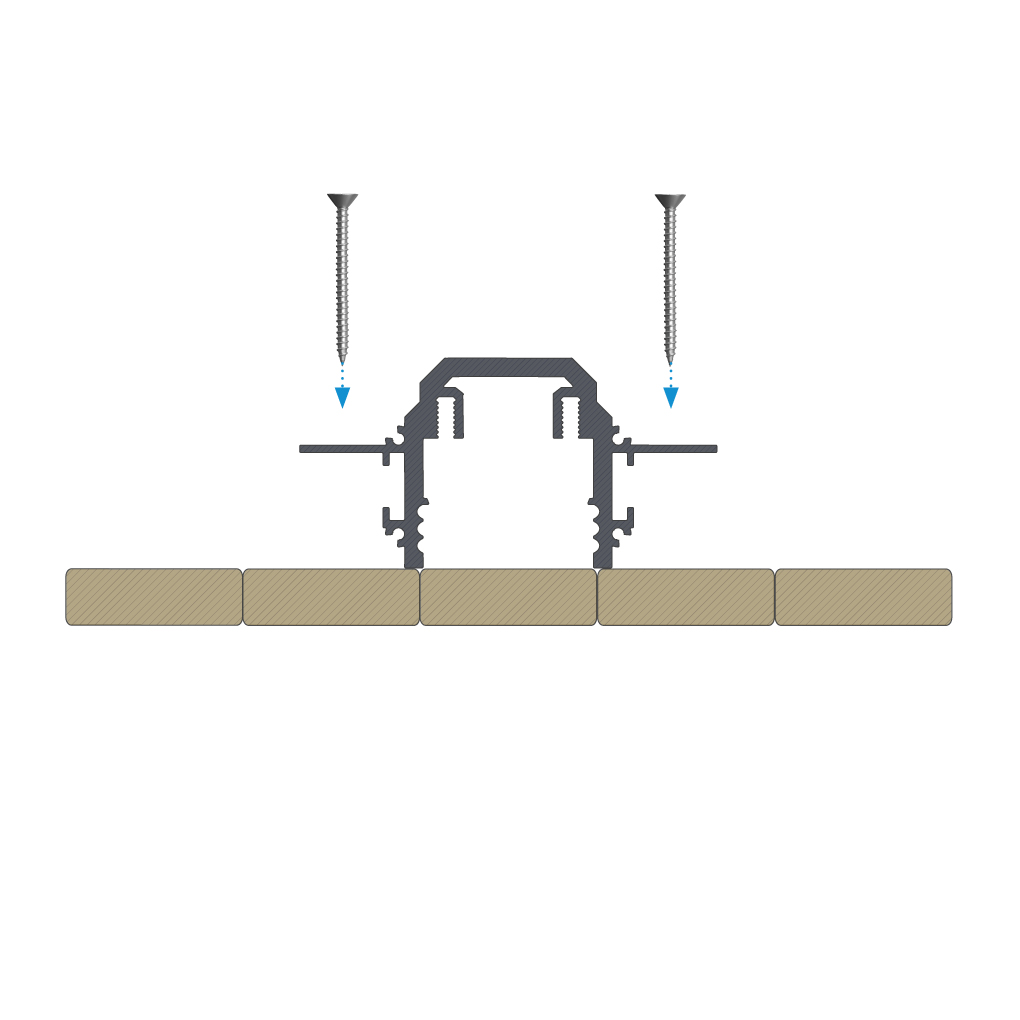

Instructions for installing DURO LED profile in formwork using screws.

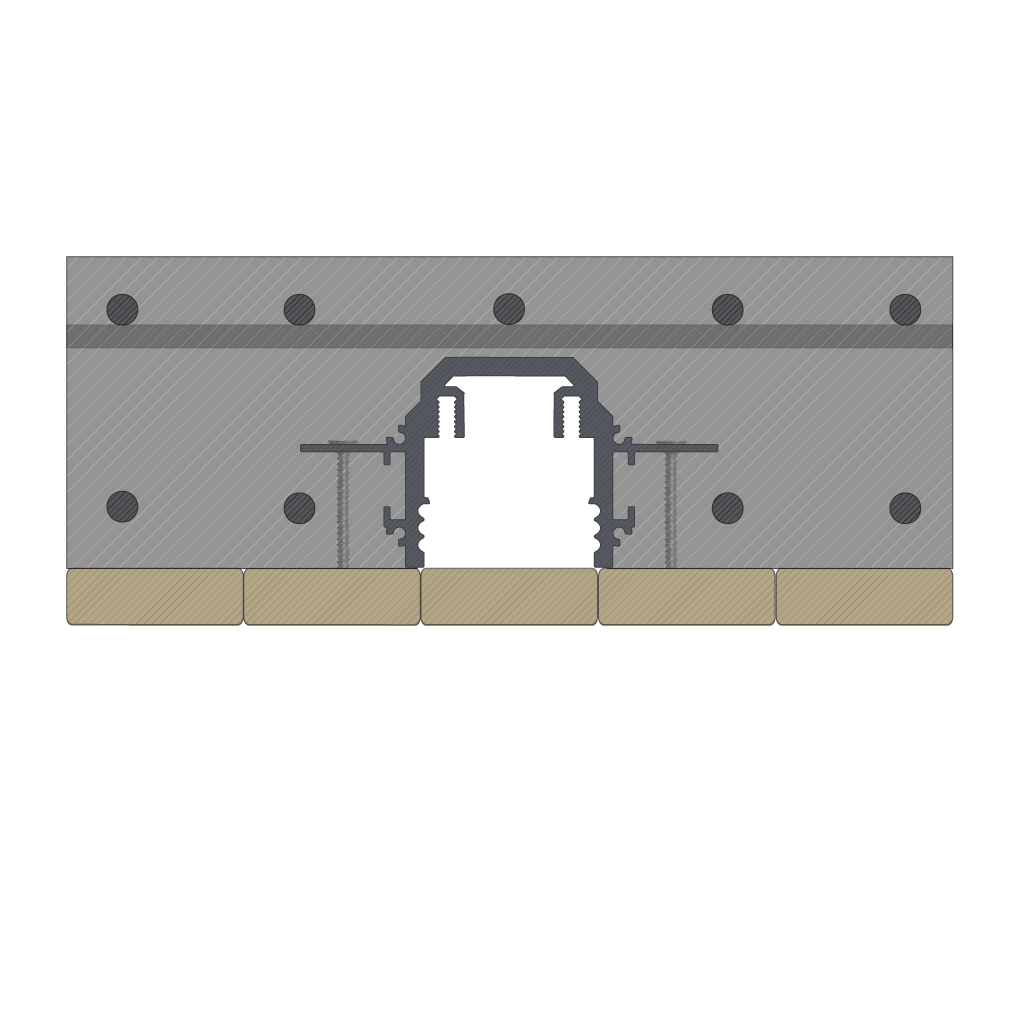

The effect of mounting DURO LED profile in formwork using screws after reinforcement installation and concrete pouring.

Instructions for installing DURO M1 assembly profile with LIFT ONE cover using screws.

The effect of mounting DURO M1 assembly profile with LIFT ONE cover using screws after plaster finishing.

Assembly scheme for elements of the lighting system using DURO LED profile and (1) LIFT ONE cover, (2) LED strip, (3) DURO M1 assembly profile, (4) DURO end cap without hole, (4a) DURO end cap with hole.
