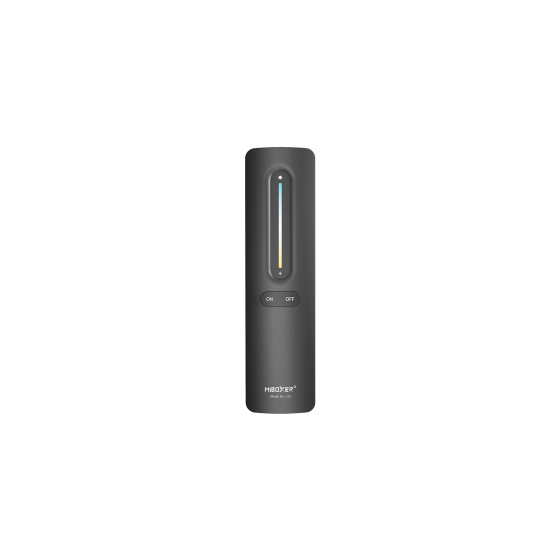

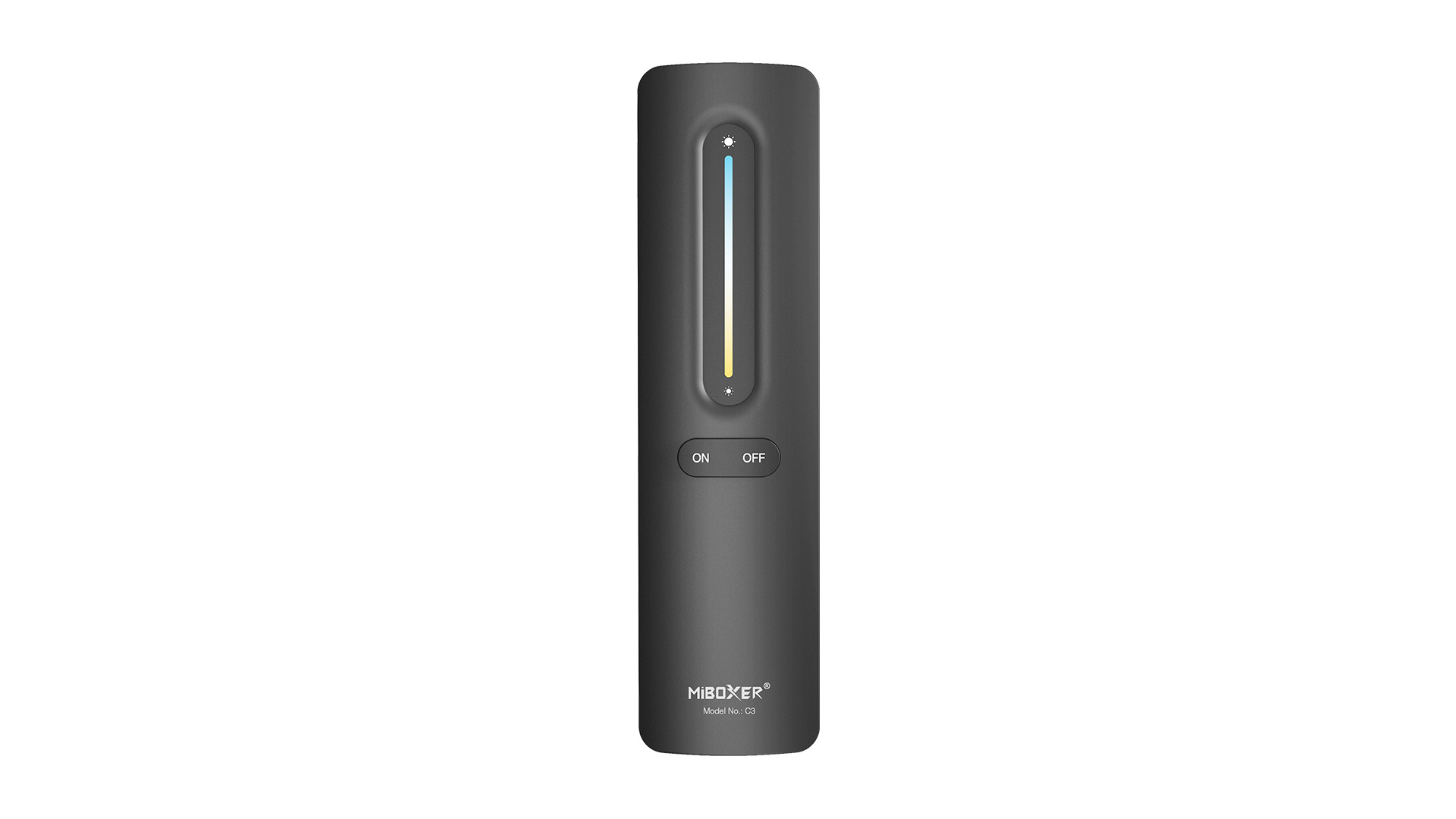

MiBoxer REMOTE RF 2.4GHz 1 ZONE MONO/CCT C3

MiBOXER C3 controller enables remote control of LED lighting brightness and color temperature. It operates on RF 2.4 GHz wireless technology, ensuring a stable connection with MiBoxer/Mi-Light receivers and luminaires within a range of up to 30 metres.

The device enables to adjust light parameters using intuitive touch sliders, which ensures convenient control and quick adjustment of lighting to your needs. The C3 remote control can be paired with an unlimited number of receivers, providing full configuration flexibility. Thanks to its magnetic base, the remote control can be easily placed in a convenient location, always within reach.

Control 1 zone using one remote control

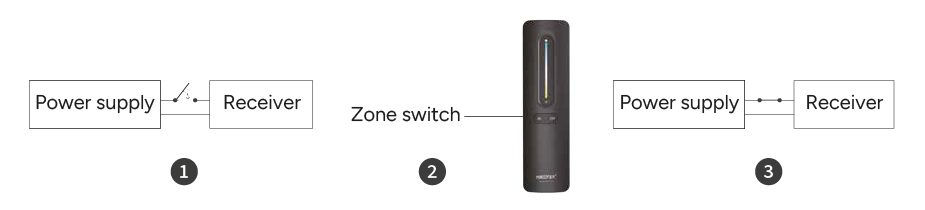

Pairing the remote control with the receiver is extremely simple. You should disconnect the main power supply from the receiver (1), then reconnect the power supply and, within the first 3 seconds, briefly hold down the previously selected channel on the remote control (2). The effect of correct pairing of the devices will be the LED strip (3) blinking three times.

Receiver pairing diagram with remote control
