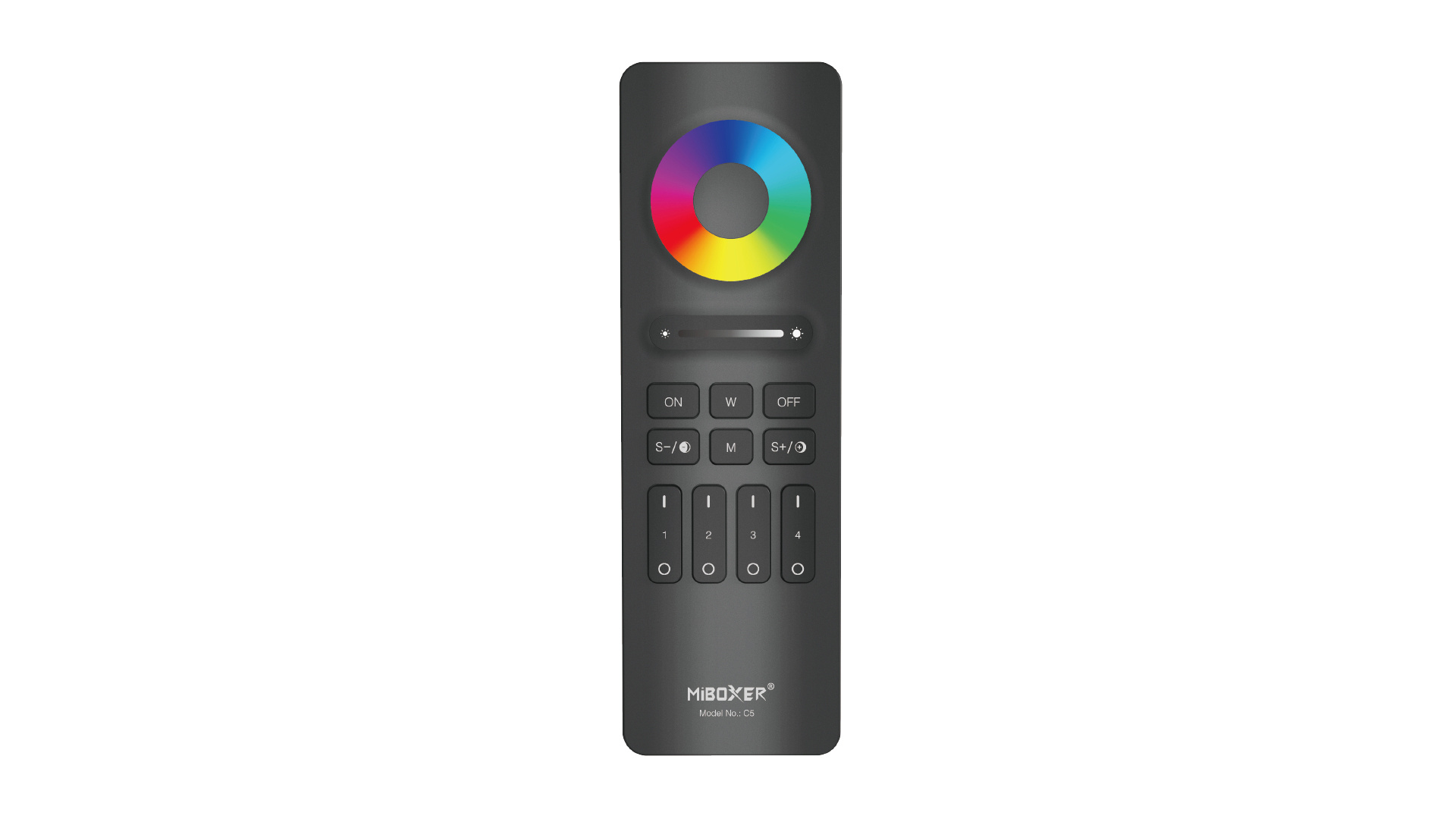

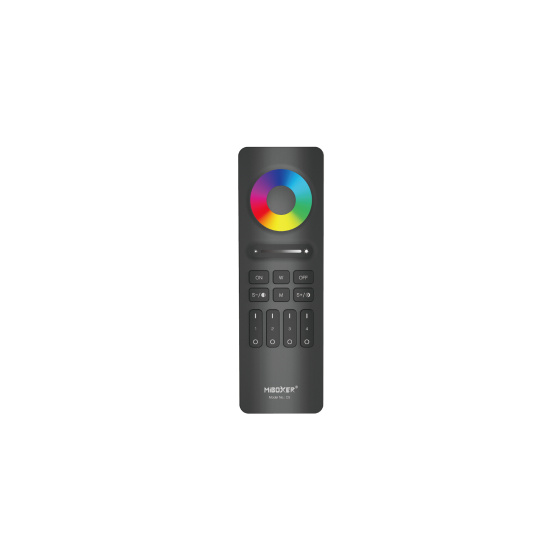

MiBoxer REMOTE RF 2.4GHz 4 ZONES RGB+CCT C5

MiBOXER C5 controller enables remote control of brightness, color temperature, and RGB colors of LED lighting. It operates on RF 2.4 GHz wireless technology, ensuring a stable connection with MiBoxer/Mi-Light receivers and luminaires within a range of up to 30 metres.

The C5 supports four independent zones to which any number of receivers (sold separately) can be assigned. The remote control gives you access to a palette of 16 million colors, saturation adjustment, lighting effect speed, and lighting modes, allowing you to freely shape the atmosphere of your interior. Thanks to its magnetic base, the remote can be easily placed in a convenient spot, always within reach.

Control 4 zones using one remote control

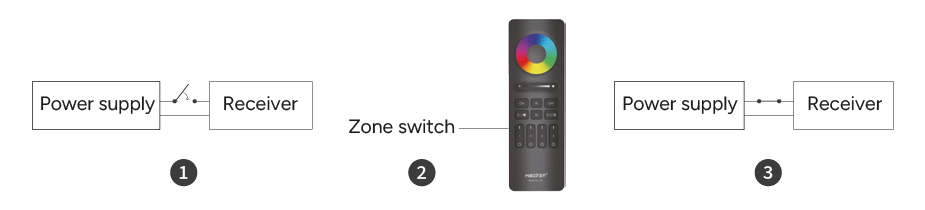

Pairing the remote control with the receiver is extremely simple. You should disconnect the main power supply from the receiver (1), then reconnect the power supply and, within the first 3 seconds, briefly hold down the previously selected channel on the remote control (2). The effect of correct pairing of the devices will be the LED strip (3) blinking three times.

Receiver pairing diagram with remote control
