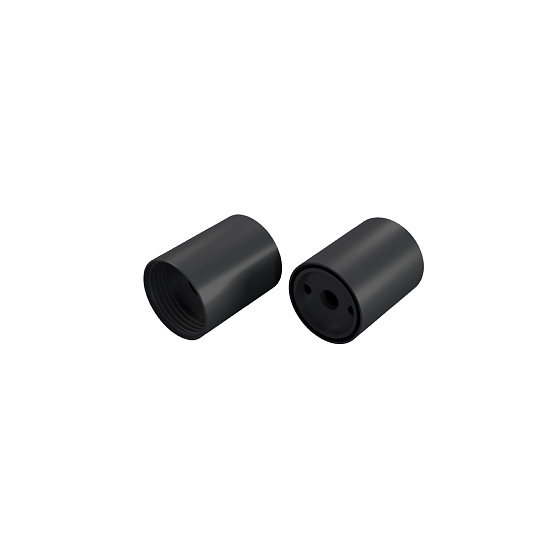

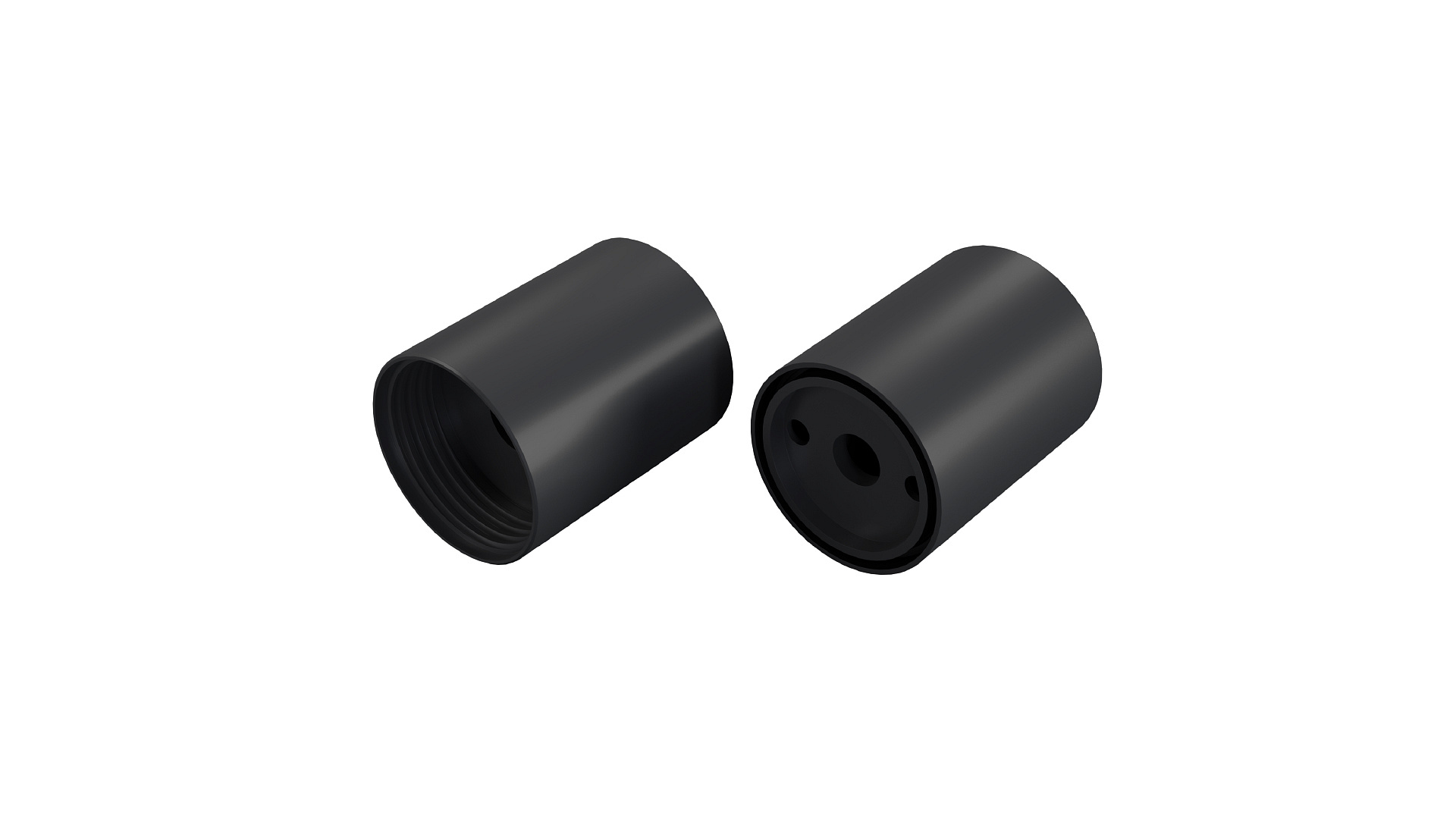

LUMINES SFERO ALU end cap MS3 anodized black set

Skladem

Termín a způsob doručení

Dedicated decorative aluminium end caps for the LUMINES SFERO profile. Available versions: SFVíce

Oblíbený

Porovnat

Vyberte si zvýhodněné balení

Množstevní slevy

Dotaz

Hlídat

Parametry

Kód u dodavatele:

14-2029-31

EAN:

5904405995389

Stav:

System:

SFERO

End Cap Materials:

Aluminum

End Cap Shapes:

No hole, SFERO MS3

End Cap Colors:

Black

Popis LUMINES SFERO ALU end cap MS3 anodized black set

Dedicated decorative aluminium end caps for the LUMINES SFERO profile.

Available versions:

SFERO MS1 (with a hole for the power supply cable or without a hole) for mounting the profile as a suspended luminaire in a vertical orientation (perpendicular to the ceiling), using an M10x1 4 mm threaded metal strain relief.
SFERO MS2 (with a hole for the power supply cable or without a hole) for mounting the profile as a suspended luminaire in a horizontal orientation (parallel to the ceiling), as well as for surface mounting using the SFERO MS2 mounting clip.
SFERO MS3 for mounting the SFERO profile to the wall on one side and suspending it on a suspension cable on the other side (using the MS2 end cap).

Color variants:

silver anodized,
black anodized.

Installation instructions for the SFERO LED profile using: (1) M10×1 4 mm metal cable lock, (2) SFERO MS1 end cap with a hole, (3) SFERO MS1 end cap without a hole.

Installation instructions for the SFERO LED profile using: (1) SFERO MS2 metal clips, (2) two-piece SFERO MS2 end caps.

Installation effect of the SFERO LED profile using: SFERO MS2 metal clips and a two-piece SFERO MS2 end cap.

Installation diagram of the lighting system components using the SFERO LED profile and: (1) SFERO FLEX light source, (2) two-piece SFERO MS2 end caps without holes, (3) SFERO MS2 metal clips.

Installation diagram of the lighting system components using the SFERO LED profile and: (1) SFERO FLEX light source, (2) two-piece SFERO MS2 end caps without holes, (3) suspension cables.
